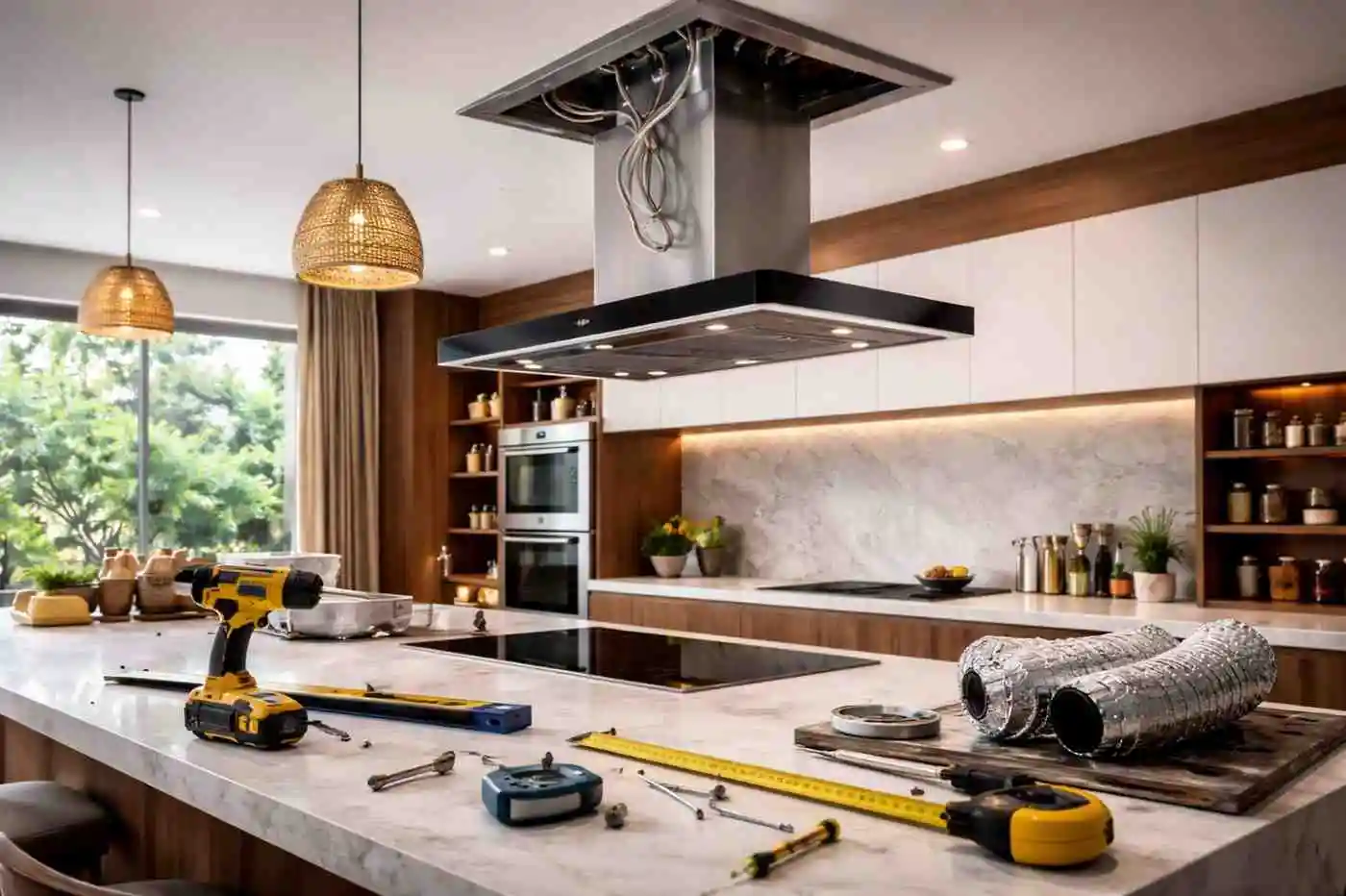

Island Chimney Installation Guide: Height, Ducting & Installation Requirements
Island chimneys look stunning at the centre of a modern kitchen but getting installation right is just as important as choosing the right model. Proper island chimney installation involves accurate measurements, correct height, well-planned ducting, and strong support from the ceiling. When each part is planned carefully, the chimney not only looks premium but also performs efficiently for Indian-style cooking. For help choosing the right size, type, and features before installation, check the detailed island chimney buying guide.
What Is Island Chimney Installation?
Island chimney installation refers to fixing a chimney directly from the ceiling, positioned over a cooktop placed on a kitchen island. Unlike wall-mounted chimneys that rest against a wall, island chimneys hang freely in the centre of the kitchen and are accessible from all sides.
In a ceiling-mounted island setup, the glass or steel hood sits exactly above the hob while the body and flue extend upwards to the ceiling. This demands accurate alignment so that the chimney covers the cooktop properly. The entire weight of the appliance is supported by the ceiling, which makes alignment and reinforcement crucial parts of island chimney installation.
This process is more complex than a wall-mounted setup for several reasons:
● No wall support: Wall chimneys use rear brackets and anchors directly into brick or concrete. Island chimneys rely only on the ceiling for support.
● Central location: The chimney must be centred over the cooktop for both performance and aesthetics. Even a small misalignment is clearly visible.
● More visible ducting: Ducting for island chimney models usually runs vertically through or above the false ceiling, so any planning errors can spoil the look of the entire kitchen.
● Higher airflow demand: Since an island chimney is open from all sides, it must be installed at the correct height with an efficient duct to maintain strong suction.
Because of these factors, island chimney installation requires more planning, precision, and often professional involvement compared to standard wall chimneys.
Standard Island Chimney Installation Height
Getting the island chimney installation height right is one of the biggest factors in day-to-day performance. If the chimney sits too high, the smoke spreads before the hood can pull it in. If it sits too low, it gets in the way while cooking and may even feel unsafe.
1. Recommended Distance Between Cooktop and Chimney
For most gas cooktops, the standard island chimney installation height is usually in the range of 65–75 cm from the top of the hob to the bottom of the chimney hood. This distance allows the suction area to be close enough to capture smoke and steam while keeping enough clearance for tall utensils and free movement.
Some manufacturers may specify slightly different values depending on burner power and hood design. Always cross-check product manuals, but keep the 65–75 cm band as a strong reference point when planning island chimney installation height.
2. Effect of Ceiling Height
Ceiling height has a direct impact on how the chimney hangs and how much of the flue remains visible. In kitchens with typical ceiling heights around 9–10 feet, the standard mounting kits are often sufficient.
However, if the ceiling is higher:
● The visible flue becomes longer.
● Extra extension ducts or flue covers may be needed.
● A stronger motor and careful ducting for island chimney models become important because the smoke travels further before exiting the house.
For lower ceilings, care must be taken so the island chimney installation height does not make the hood feel too low or intrusive. Proper planning ensures the hood sits comfortably at the recommended height while the flue attaches neatly to the ceiling without awkward cuts.
3. Island Chimney Installation Height for Indian Kitchens
Indian kitchens typically involve heavy frying, tadka, grilling, and cooking that produce strong aromas and oil vapours. To handle this, many installers prefer keeping the island chimney installation height closer to the lower end of the recommended range, around 65–70 cm, provided safety guidelines are met.
This slightly closer distance gives the chimney a better chance of grabbing thick smoke before it disperses across the open kitchen and living area. For induction or electric cooktops that produce less flame but still release steam, the same range works well with minor adjustments based on manufacturer recommendations.
Ducting for Island Chimney – Requirements Explained
Well-designed ducting for island chimney setups is just as important as motor power. Even a powerful chimney underperforms if the duct is too long, narrow, or full of bends. When planning island chimney installation, it helps to understand a few basic rules about how the duct should be laid out.
1. Duct Length Limits
Ideally, ducting for island chimney installations should be as short and direct as possible. Every additional metre of ducting reduces suction efficiency a little.
● Try to keep the total duct length under 10–12 feet where practical.
● Shorter ducts give better airflow, lower noise, and faster smoke removal.
● If a longer run is unavoidable, choose a wider diameter duct and minimise bends.
Ducts usually run upward from the chimney, through the false ceiling, and then horizontally to an outer wall or roof vent. Planning this path before installing the false ceiling makes island chimney ducting requirements much easier to fulfil.
2. Number of Bends
Every bend in the duct slows down air and increases back pressure.
● Aim for no more than two to three gentle bends in the entire ducting path.
● Use long-radius elbows instead of sharp, tight bends.
Too many bends cause noise, reduce suction, and can push smoke back into the kitchen. During island chimney installation, it is always better to reroute slightly to avoid unnecessary curves rather than compromise with multiple elbows.
3. Duct Diameter
One of the most important island chimney ducting requirements is the correct duct diameter.
● Most high-suction chimneys specify 6-inch or 8-inch ducts.
● Using a smaller diameter than recommended increases resistance and can damage the motor over time.
● Larger, correctly-sized ducts move air more smoothly and quietly.
Never reduce duct size just to fit within a small ceiling cavity or beam space. Instead, adjust the route or create proper space in the false ceiling so that ducting for island chimney models remains wide and unobstructed.
4. Rigid vs Flexible Ducts
When comparing rigid and flexible options, rigid ducts are usually the better choice for island chimney installation:
● Rigid metal ducts (galvanised or stainless steel) offer smooth inner surfaces, less noise, and lower airflow resistance. They are ideal for long-term durability and airflow efficiency.
● Flexible aluminium ducts are easier to install but can sag, collect oil deposits, and reduce suction if not stretched properly. They are best used only for short connections between the chimney outlet and the rigid duct.
For a robust setup that maintains performance for years, rigid ducting for island chimney installations is strongly recommended wherever possible.
Electrical & Ceiling Requirements for Island Chimney Installation
Island chimneys are heavier than they look and depend entirely on the ceiling structure and electrical planning. Taking care of these basics before installation prevents safety issues and expensive rework later.
1. PowerPoint Placement
An accessible and safe electrical connection is essential for island chimney installation.
● Provide a dedicated 15A power socket, as recommended by the manufacturer.
● Place the socket in the ceiling cavity near the top of the chimney flue so that wires are not visible externally.
● Ensure proper earthing and a separate switch or MCB to isolate the chimney when needed.
Avoid running long external wires from wall-mounted sockets across the ceiling. Clean, concealed wiring keeps the kitchen looking premium and reduces the risk of electrical faults.
2. False Ceiling Support
Most modern island kitchens use a false ceiling to hide ducts and wiring. However, the false ceiling itself usually cannot carry the full weight of the chimney.
● Heavy parts must be anchored into the main RCC slab or strong wooden/metal frames above the false ceiling.
● Install extra support channels or wooden beams precisely where the chimney will hang.
● Confirm that the frame can safely bear the weight of the hood, flue, and ducts together.
Proper supports ensure that the island chimney installation height stays stable over time without sagging or vibration.
3. Structural Reinforcement
In some kitchens, beams, rafters, or roof slopes may complicate mounting points. A little structural planning helps here:
● Use chemical anchors or expansion bolts suitable for concrete ceilings.
● When the ceiling is made of lightweight material, install a steel or hardwood frame fixed to the main structure, then attach brackets to this frame.
● Ensure that the centreline of the support structure aligns perfectly with the hob position on the island.
A strong structural base is the backbone of safe island chimney installation, especially when the duct and chimney body are long.
Step-by-Step Island Chimney Installation Process
While exact steps vary between brands and models, most island chimney installation processes follow a similar flow. Understanding the sequence helps track whether everything is being done correctly.
1. Marking and Measurement
● Identify the exact centre point of the cooktop on the island.
● Transfer this centre point to the ceiling using a plumb line or laser.
● Mark locations for mounting brackets on the ceiling frame according to the chimney’s template.
● Double-check the planned island chimney installation height from cooktop to hood.
Accurate marking at this stage ensures the hood hangs exactly above the burners and looks symmetrical from every angle.
2. Installing Mounting Brackets
● Drill holes into the ceiling structure or reinforced frame as per the template.
● Fix heavy-duty anchors or bolts that match the chimney’s weight.
● Attach the mounting plate or suspension brackets firmly to the ceiling.
All screws should be tightened evenly so that the brackets remain level. Any tilt here will later show up as a crooked hood.
3. Hanging the Chimney Body
● Carefully lift the chimney hood or use temporary supports if the model is heavy.
● Hook the hood onto the brackets or support rods as instructed in the manual.
● Secure all locking screws and nuts.
● Re-check the island chimney installation height and alignment with the cooktop.
Some models allow fine adjustments after hanging. Use these settings to get a perfectly horizontal and centred look.
4. Duct Connection
● Connect the outlet of the chimney to the starter piece of the duct using a collar and clamps.
● Run the duct vertically upwards to the false ceiling, then route it horizontally to the exhaust point.
● Maintain gentle bends and correct duct diameter, matching all island chimney ducting requirements.
● Seal joints with aluminium tape or appropriate sealant to prevent leakage of fumes.
Proper ducting for island chimney units not only maintains suction but also prevents greasy air from escaping into the ceiling cavity.
5. Electrical Connection and Flue Cover
● Connect the chimney power cable to the prepared power point.
● Fit the decorative flue covers around the duct and fix them to the ceiling or support frame.
● Make sure there are no pinched wires or gaps.
The flue cover hides the duct and gives the island chimney installation a clean, finished appearance.
6. Final Testing
● Switch on the chimney and test all speed levels and lights.
● Hold a strip of tissue or a light plastic sheet near the hood to check suction direction and strength.
● Inspect for unusual vibrations, noise, or air leaks around duct joints.
Once performance is satisfactory, the chimney is ready for everyday use.
Common Mistakes to Avoid During Island Chimney Installation
Good planning helps avoid expensive mistakes that can reduce performance or damage the appliance. Some issues appear small during installation but become major annoyances later.
1. Incorrect Height
Mounting the chimney too high reduces its ability to trap smoke and steam. Setting it too low makes cooking uncomfortable and unsafe. Always measure the island chimney installation height carefully and follow the manufacturer’s range. In Indian kitchens, erring slightly on the lower side of the range usually gives better smoke capture, provided safety clearances are respected.
2. Excessive Duct Bends
Every unnecessary bend in the duct robs the chimney of power. Over time, grease buildup at sharp turns further blocks airflow. Keep ducting for island chimney units as straight as possible, and avoid twisting or kinking flexible ducts.
3. Poor Sealing and Loose Joints
Leaving joints unsealed or ducts loosely clamped allows smoke and grease to escape into the ceiling. This can cause stains, odour, and even pest issues. Proper sealing is a key part of island chimney ducting requirements and should never be skipped.
4. Ignoring Structural Strength
Fixing brackets into weak material like gypsum or plywood without reinforcement can lead to serious safety risks. Always ensure structural supports are strong enough for long-term load-bearing.
Professional vs DIY Island Chimney Installation
With online videos and manuals, DIY projects can look tempting. However, island chimney installation is not just about hanging an appliance; it involves electrical safety, structural strength, and airflow design.
1. Safety Risks
Incorrect wiring, weak brackets, or poor ducting for island chimney setups can lead to:
● Electrical shocks or short circuits
● Chimney detaching from the ceiling
● Smoke leaks and fire hazards near hot areas
These are not risks worth taking in a busy home kitchen.
2. Warranty Concerns
Many brands clearly state that improper or unauthorised installation can void warranty coverage. If the chimney is not installed as per guidelines—especially regarding duct diameter, length, and island chimney installation height—future service claims may be rejected.
When Professional Installation Is Recommended
Professional installation is strongly recommended when:
● The kitchen has a complex false ceiling or a very high roof.
● Long duct runs or multiple bends are unavoidable and need expert planning.
● Structural reinforcement is needed to carry the weight of the chimney.
● Owners prefer peace of mind that all island chimney ducting requirements and safety standards are met.
For straightforward kitchens with pre-planned electrical and ceiling support, supervision by an experienced technician still ensures that every detail—from measurements to sealing—is handled correctly.
FAQs on Island Chimney Installation
The standard island chimney installation height is generally 65–75 cm above the cooktop, measured from the top of the hob to the bottom of the chimney hood. The exact value may vary slightly depending on the model and manufacturer, but staying within this range offers a good balance between safety and strong suction.
The exact length depends on the distance between the chimney outlet and the nearest exterior wall or roof vent. As a rule, ducting for island chimney setups should be as short and straight as possible, typically under 10–12 feet where practical. Shorter ducts with minimal bends maintain better airflow and lower noise.
Rigid metal ducts are generally considered best for island chimney installation. They provide smooth inner surfaces, better airflow, and higher durability compared to long runs of flexible duct. Flexible ducts may still be used for short connections, but rigid ducting remains the preferred option for meeting ideal island chimney ducting requirements.
Yes, island chimney installation can be done without a false ceiling, but the duct will remain visible unless a custom box, column, or cover is created to hide it. In homes without a false ceiling, proper planning is needed to route the duct neatly to the outside while still following correct diameter and bend limits.
Absolutely. Longer ducts and multiple bends create resistance, which reduces suction power and increases noise. To keep performance high, ducting for island chimney systems should be kept short, straight, and of the correct diameter. Following these guidelines ensures the chimney can quickly remove smoke and odour from the kitchen.
Some brands may not legally mandate professional installation, but it is strongly recommended. Professional technicians understand island chimney ducting requirements, correct island chimney installation height, and structural safety. This reduces the risk of performance issues and protects warranty coverage.
An island chimney usually needs a dedicated 15A socket (or as specified by the brand) with proper earthing and a separate switch or MCB. The socket should be located in the ceiling or within the flue area so that wires remain concealed. Planning this point in advance ensures safe, neat, and reliable island chimney installation.
